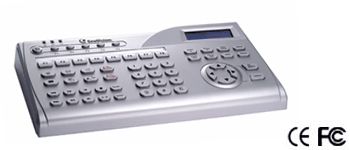

The GV-Keyboard V3 is designed to program and operate GV-System / GV-VMS, and it can also be connected with PTZ cameras directly for PTZ control.

Key Features

  • Up to 36 GV-Systems / GV-VMS supported
  • Up to 8 monitors for different live view displays with multiple Keyboards
  • PTZ camera control
  • OSD panel supported

  • Specifications
  • Download
  • Ordering Info

  GV-System (GV-DVR/ NVR) GV-VMS
N/A
Version Supported GV-System V8.4 or later GV-VMS V14.10 or later
Output USB USB 2.0
DVR/RS-485+
DVR/RS-485-
Connects to GV-NET card, GV-NET/IO card, GV-Hub V2 or GV-COM V2
PTZ/RS-485+
PTZ/RS-485-
Connects to PTZ cameras
PTZ/RS-422+
PTZ/RS-422-
Communication RS-485 9,600 bps (between the keyboard and GV-System)
RS-485 / 422 2,400 ~ 115,200 bps (between the keyboard and PTZ cameras)
Power DC In DC 12V 1A
Environmental
Conditions
Operating Temperature 0~50°C / 32 ~122°F
Humidity 5% ~ 95% (non-condensing)
Dimensions (L x W x H) 161 x 300 x 45 mm / 6.34 x 11.81 x 1.77 in

Note:
1. Currently, GV-Keyboard V3 does not support embedded operating systems.
2. Specifications are subject to change without notice.



Quick Start Guide zip
User's Manual zip
Datasheet pdf

Item No. (Sales Part No.) Description
{item} {Des}
